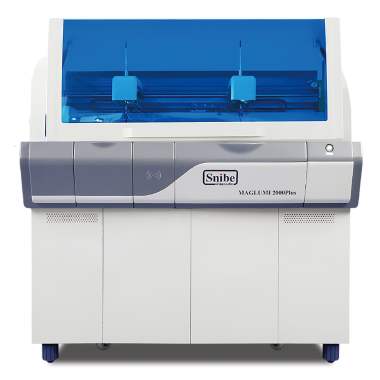

Snibe Diagnositics

● Throughput: up to 180 tests/hour
● 24 hours ready-to-use
● Time to first result:17 minutes

Principle of Luminescence
● Non-enzyme involved flash chemiluminescence, long stability of reagents
● ABEI label, stable in acid and alkaline solution

Modes of Operation
● Random, Batch and STAT

Sample Loading
● Up to 144 primary tubes
● Continuous loading, STAT available
● Barcode reader recognition or analyzer auto numbered
● LIS connection, auto read sample info
● Refrigerated sample area with independent power supply

Reagent Loading
● 25 reagents on board
● Continuous loading
● RFID reading all info of reagents
● Refrigerated reagent area

Reagent Features
● Integrated kit, ready-to-use, no pretreatment required
● Integrated kit including calibrators
● Using superparamagnetic micrbeads
● RFID tag storing all info of reagent
● RFID tag with built-in master curve
● 2-point calibration to adjust master curve
● Calibration stability: Max 4 weeks

Other Features
● Clot detection
● Liquid level detection for reagent
● Optional ratio for sample dilution
● Auto dilution for high concentration sample
● Constant 37℃ incubation
● 15-30℃ Operating Temperature

Operation System
● Windows XP
● HP compatible (Dual-core CPU)
● Color touch screen

Interconnection
● Connection to LIS via COM or network card
● Direct operation on LIS system to test
